Hi-Puncher
Hi-Puncher is a simultaneous punching system with a pair of metal cast to handle large-sized Green sheet at high speed.
Applications
- LED package
- Large-sized substrates
- Antenna module
Features
- Adaptable to large-sized sheets up to □400 mm
- High-precision finishing by batch machining with high-precision mold
- High-speed machining improving production capacity
- Adaptable to fine patterns and specially shaped holes
- Easy tooling change

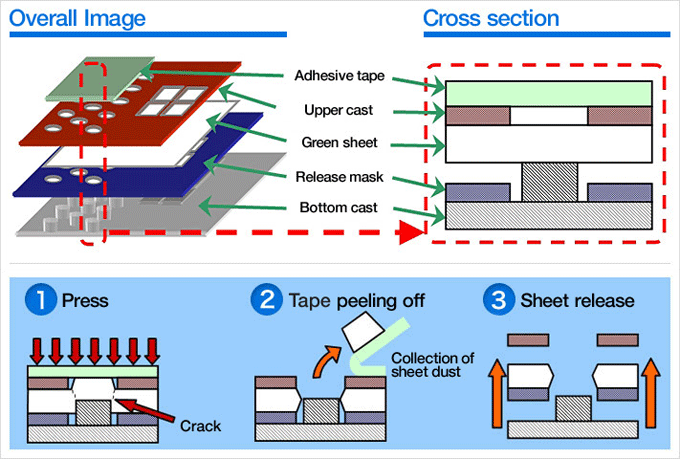

Principle of batch mold
Demonstration equipment specifications
| MODEL | GP4040-54S | |
|---|---|---|
| System thrust force | 540kN | |
| Cycle time | Approx. 90 seconds * Varies on work condition. | |
| Drive system | Hydraulic servo system |
|
| Work area | □245 mm × / □390 mm | |
| Dimensions | 1,350 (W) × 1,600 (H) × 1,820 (D) mm * excluding protruding portion |
|
